VMC (Virtual Motion Capture) - Streaming from Hand Engine

VMC (Virtual Motion Capture) - Streaming from Hand Engine


VMC (Virtual Motion Capture) - Streaming from Hand Engine

Requirements

  • You will need to make a Pixiv account to download the free version
  1. Calibrate your studio gloves

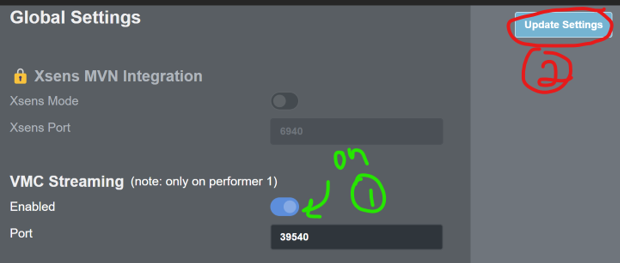

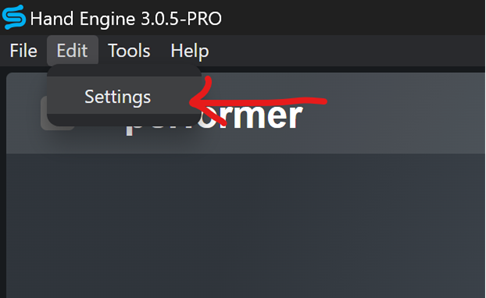

  2. Turn on the VMC port toggle in Hand Engine and click “Update Settings”

  3. Import in your custom VRoid model

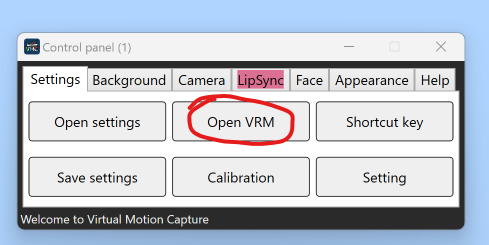

  1. In Control Panel > Open VRM > “Import VRM” or “Open VRoid Hub” pick your model Vroid model
  1. “Import VRM” allows you to directly choose a .vrm model from your computer
  2. “Open Vroid Hub” connects to Steam on your computer and you are able to choose any custom character you are working on

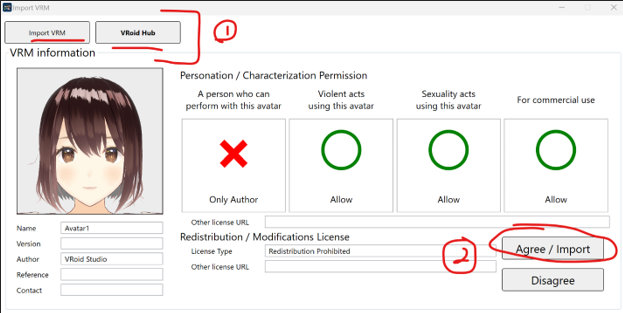

  1. Click “Agree/Import”

  1. Edit Hand Engine’s Port Number

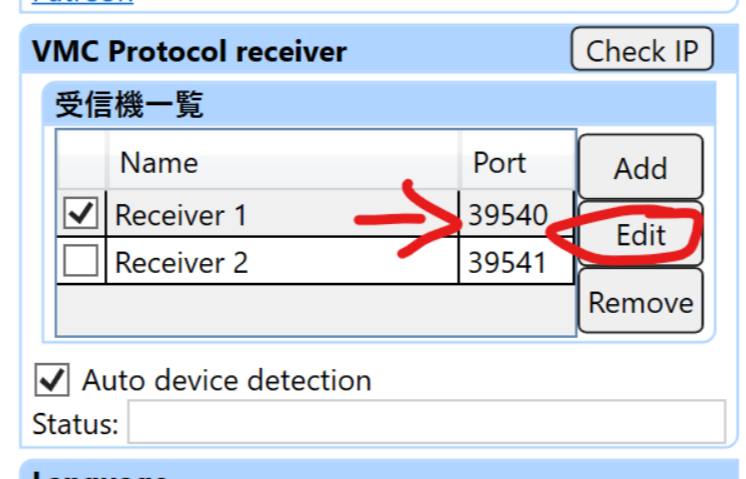

  1. Under the “VMC Protocol receiver” click “Edit” for the 39540 Receiver

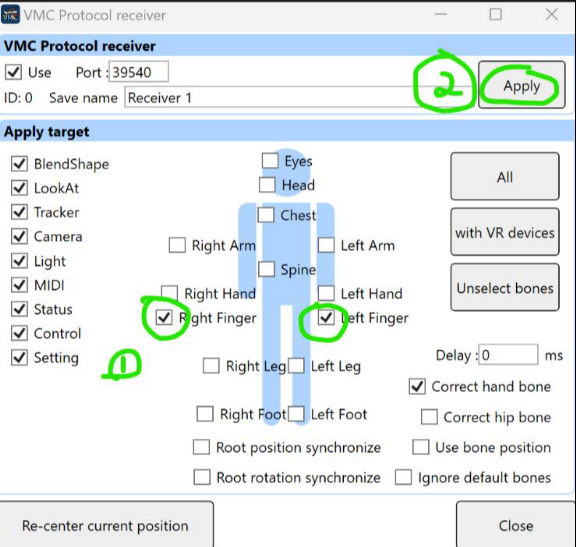

  1. Turn on Right Finger and Left Finger check boxes and click “Apply”
    ProtocalReceiver
  2. Horay! Your fingers should be moving.

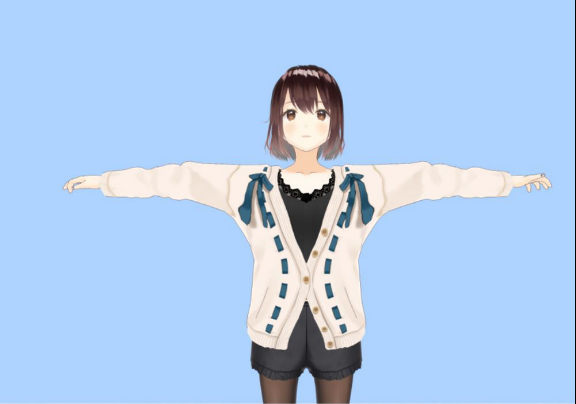

    VMC_Final
