1. Performer Setup

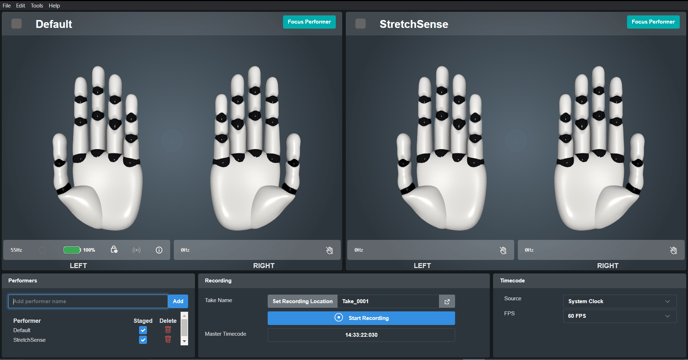

Create a performer


Hand Engine 3 has the ability to create and store calibration for multiple performers. Upon launching a Default performer will be automatically generated.


If you have Hand Engine Pro, you can add more than one performer by clicking on Add.




The performer will be created and automatically staged.





Stage an existing performer


If a performer is already staged, the check box next to that performer will be ticked. To stage a performer, please select the check box next to that performer.



Unstage a Performer

To unstage a performer, please de-select the check box next to that performer. You can select this box to bring the performer back to the stage.


2. Connecting Your Gloves to Hand Engine

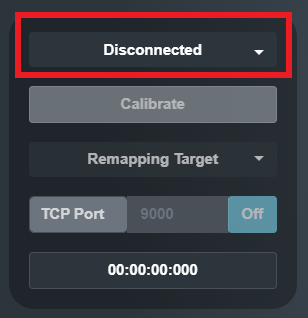

To connect to your gloves, please stage a performer, and next to the associated hand (Left or Right), click on the drop-down box to select the connection mode:

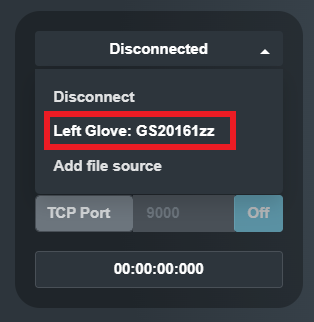

Choose the appropriate option from the dropdown menu, either Left or Right hand, based on the side you are configuring. The serial number displayed in the dropdown will correspond to the one printed on the glove on the inside of the pull tab.

3. Calibration


 Please make sure you have staged a performer and connected your gloves to Hand Engine prior to performing a calibration.

  1. Make sure your glove is connected and data is coming through.

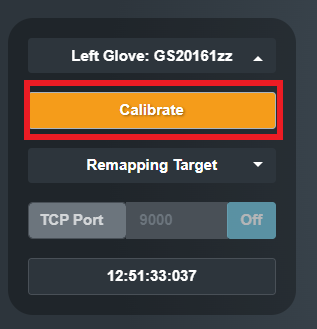

  2. Click on the Calibrate button

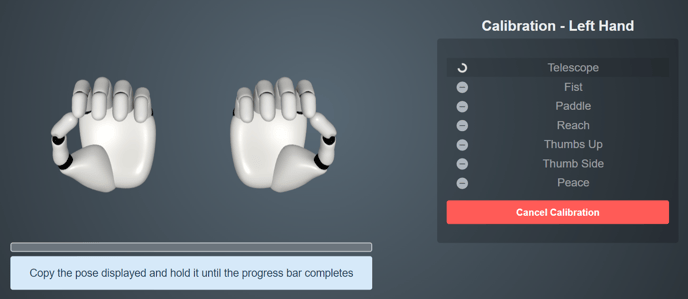

  3. Perform hand poses as per the instructions on the screen.
  4. Now you are all set!



TIP:

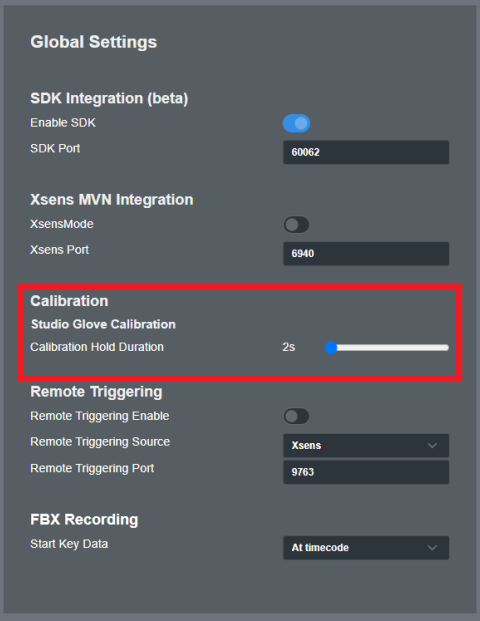

You can increase the progress bar duration in Edit -> Settings.
